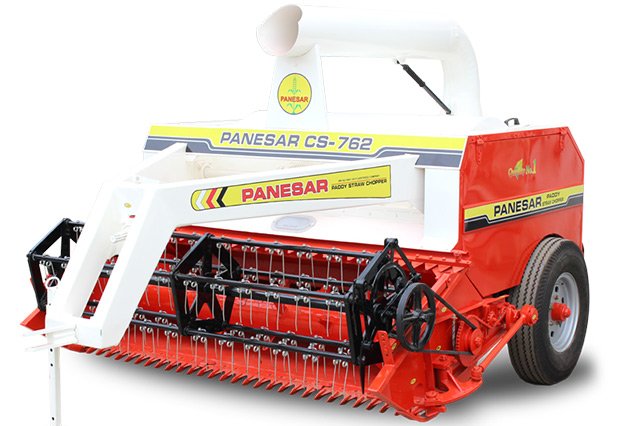

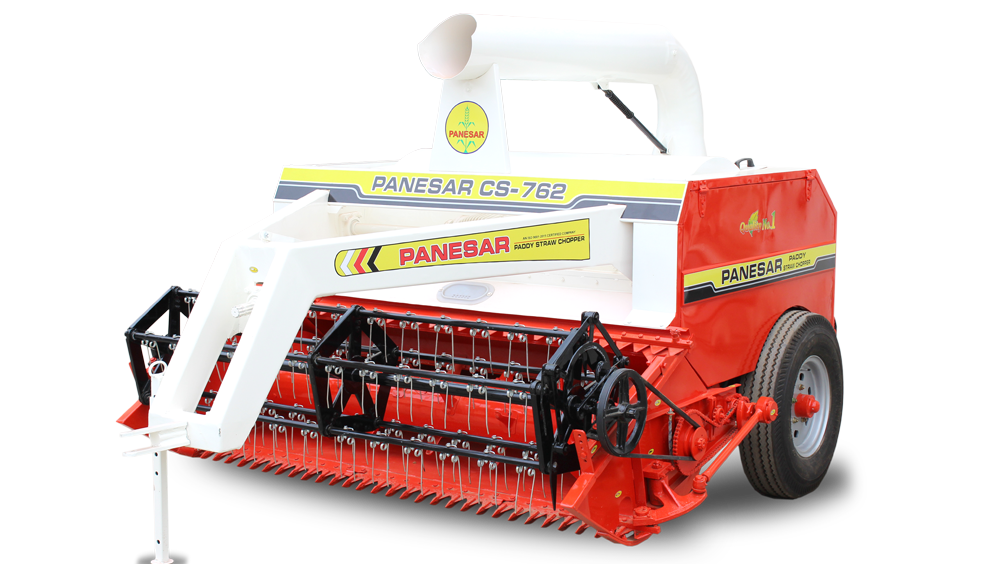

CS 762 (Paddy Straw Chopper)

Panesar Straw Reaper are Tested & Approved by Govt. of INDIA (Ministry of Agriculture). Specially developed for the tough geographical area.Panesar Straw Reaper is a small harvesting combine and available in different sizes as per requirement of clients. Panesar straw reaper made by heavy quality material to perform long lasting with sleek and unique design.
Advantages
• Less fuel consumption.
• Easy availability of spare parts of Straw Reaper.
• Adjustable rear hook
• Idler provided with belt drives.
• Heavy duty gear box

A.Model	Panesar
Model	PANESAR STRAW REAPER 751
Type	P.T.O. Driven
Driven Power	45 HP (P.t.o)
Rated Speed	1800 rpm
B. TRANSPORT WHEEL
Type	Pneumatic Ribbed
Cutting Height	2
Reel Height Adjustment	1915
Feeder Housing	4.3 kg/cm2
C.DRIVE SHAFT
No. of pieces	2 Rectangular and 1 Round
No. of splines	21 at PTO end
D. GEAR BOX
Type	Bevel
N0. of Teeth	18
Length of splines	84mm
Gear Ratio	01:01.8
Oil capacity	1 Ltr

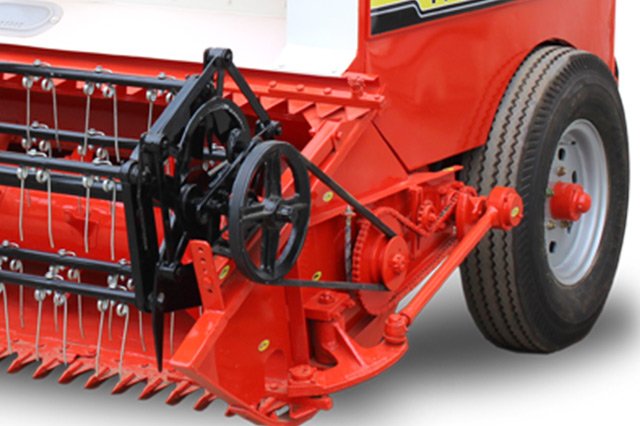

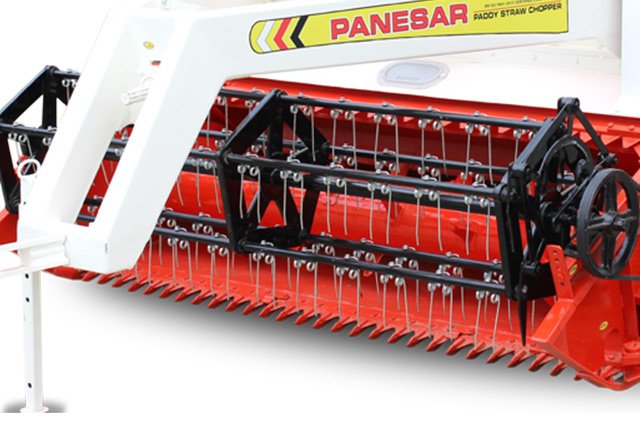

E. REEL ASSY
Type	Tyne Bar Pick-Up Reel
No. of Tyne Bar	Four
Type of Tyne Bar	Hollow with Holes
Dia of Reel	492mm
Width of Reel	2018mm
Speed of Reel at 1800 rpm	64rpm
CUTTER BAR
Cutting Width	2190 mm
Effective Cutter Bar Width	2135 mm
Knife Stroke	75 mm
No. of Knife	29
No. of Awards Size	70-75
G. FEEDING AUGER
Type	Screw Auger
Dia	486 mm
Width	2162 mm
Speed at 1800 rpm	165 rpm
H. CLEANING SIEVE
Type	Perforated M.S. Sheet
Size of Sieve	1395 x 444
I. GRAIN PAN
Size of Grain Pan (mm)	1387 x 535
Capacity	57.05 KG.
J. STRAW BLOWER
No. of Blower	2
Dia	578 mm

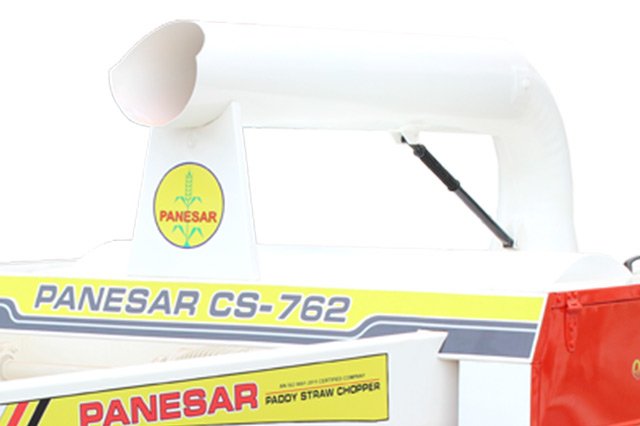

K. STRAW OUTLET EXTERION
Type	Cylindercal
Dia	275
Length	1525
